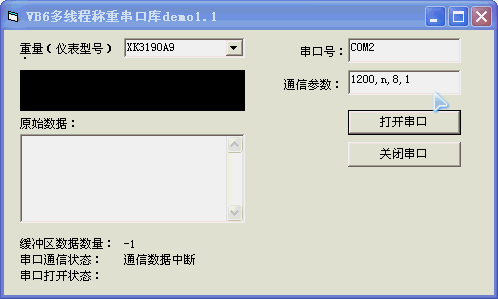

Private Declare Function OpenComm Lib "ScaleWeight" Alias "Open" (ByVal yibiaoType As String, ByVal Comm As String, ByVal Setup As String) As Boolean '打开串口 Private Declare Function GetWeight Lib "ScaleWeight" () As String '获取重量 Private Declare Sub CloseComm Lib "ScaleWeight" Alias "Close" () '关闭串口 '辅助函数 Private Declare Function GetStatus Lib "ScaleWeight" () As Boolean '串口通信状态:true通信正常,false通信中断 Private Declare Function GetCount Lib "ScaleWeight" () As Integer '获取串口缓冲区数据数量 Private Declare Function GetSourceData Lib "ScaleWeight" (ByRef buff As Byte) As Integer '获取原始数据 Private Declare Function Clear Lib "ScaleWeight" () As Integer '清空缓冲区数据 Dim buff(100) As Long Private Sub Command2_Click() Dim re As Boolean re = OpenComm(Combo1.Text, Text1.Text, Text2.Text) If re Then Label11.Caption = "串口打开成功" Else Label11.Caption = "串口打开失败,请检查串口是否存在" End If End Sub Private Sub Command3_Click() CloseComm Label11.Caption = "串口关闭" End Sub Private Sub Timer1_Timer() '读重量 Label4.Caption = GetWeight() '读原始数据 Text3.Text = "" Dim buff(1000) As Byte Dim nCount As Integer nCount = GetSourceData(buff(0)) If nCount > 0 Then For i = 0 To nCount Text3.Text = Text3.Text + " " + Str(buff(i)) Next i End If '缓冲区数据数量 Label9.Caption = GetCount() '通信状态 Dim a As Boolean a = GetStatus() If a = False Then Label10.Caption = "通信数据中断" Else Label10.Caption = "通信正常" End If End Sub
